Basic Block usage

The ember.block.Block class holds a flow field over a structured grid and evaluates thermodynamic and kinematic properties through an attached ember.fluid equation of state. This example tours the basics: choosing a shape, setting coordinates and velocities, fixing the thermodynamic state, working in a rotating frame, and the numpy-like indexing and array operations a block supports. It closes by plotting a radial profile straight from a block’s property arrays.

See the Joule cycle example for a worked thermodynamic calculation built on this same interface.

import numpy as np
import matplotlib.pyplot as plt

import ember.block
import ember.fluid

A scalar block: coordinates and velocity

With no shape argument a block defaults to a single scalar point (shape ()). Coordinates and velocity components can be set individually, or a velocity vector can be supplied as an array. Flow angles are derived properties.

block = ember.block.Block()
print(f"Default shape: {block.shape}")

# Set individual coordinates
block.set_x(0.5).set_r(1.0).set_t(0.0)
print(f"Coordinates (x, r, t): {block.xrt}")

# Set velocity components and read back derived angles
block.set_Vx(100.0).set_Vr(0.0).set_Vt(50.0)
print(f"Yaw Alpha = {block.Alpha:.1f} deg, pitch Beta = {block.Beta:.1f} deg")

# Double the velocity vector, setting from array
block.set_Vxrt(2.0 * block.Vxrt)
print(f"Doubled velocity vector: {block.Vxrt}")

Default shape: ()
Coordinates (x, r, t): [0.5 1.  0. ]
Yaw Alpha = 26.6 deg, pitch Beta = 0.0 deg
Doubled velocity vector: [200.   0. 100.]

Thermodynamic state

A block needs a fluid before any thermodynamic property can be evaluated. The state is then fixed two properties at a time (the two-property rule). Setters return self, so calls can be chained.

# Define a perfect gas
fluid = ember.fluid.PerfectFluid(cp=1005.0, gamma=1.4, mu=1e-5, Pr=0.71)

# Read back denstiy and enthalpy from a (P, T) pair.
block.set_fluid(fluid).set_P_T(1e5, 300.0)
print(f"Density {block.rho:.3f} kg/m^3, enthalpy {block.h:.0f} J/kg")

# A different property pair, in a single chained expression.
T = ember.block.Block().set_fluid(fluid).set_rho_u(1.1, 1e4).T
print(f"Temperature from (rho, u): {T:.1f} K")

Density 1.161 kg/m^3, enthalpy 86143 J/kg
Temperature from (rho, u): 313.9 K

Setting state independently

Coordinates, velocity and thermodynamic state are three independent families. Setting one gives access to its derived properties but not the others; reading a property that depends on an unset family raises ValueError.

# Coordinates alone give geometry, but velocity is still unset.
geom = ember.block.Block((2, 2, 2))
geom.set_x(np.array([0.0, 1.0])[:, None, None] * np.ones((2, 2, 2)))
geom.set_r(np.array([0.5, 1.0])[None, :, None] * np.ones((2, 2, 2)))
geom.set_t(np.array([0.0, 0.1])[None, None, :] * np.ones((2, 2, 2)))
print(f"Cell volume = {geom.vol}")
try:
    geom.Vx
except ValueError:
    print("Reading Vx before set_Vx raises ValueError")

# Velocity alone gives flow angles, but geometry is still unset.
swirl = ember.block.Block().set_r(1.0).set_Vx(100.0).set_Vr(0.0).set_Vt(50.0)
print(f"Alpha = {swirl.Alpha:.1f} deg, Beta = {swirl.Beta:.1f} deg")
try:
    swirl.x
except ValueError:
    print("Reading x before set_x raises ValueError")

# Thermodynamic state alone gives density, but geometry is still unset.
state = ember.block.Block().set_fluid(fluid).set_P_T(1e5, 300.0)
print(f"Density = {state.rho:.3f} kg/m^3")
try:
    state.x
except ValueError:
    print("Reading x before set_x raises ValueError")

Cell volume = [[[0.0375]]]
Reading Vx before set_Vx raises ValueError
Alpha = 26.6 deg, Beta = 0.0 deg
Reading x before set_x raises ValueError
Density = 1.161 kg/m^3
Reading x before set_x raises ValueError

Shifting the thermodynamic datum

The datum (where enthalpy and entropy are zero) can be moved by attaching a fluid from change_datum(). Pressure and temperature are unaffected; only enthalpy and entropy shift.

datum = ember.block.Block().set_fluid(fluid)
datum.set_P_T(1.2e5, 350.0).set_Vx(0.0).set_Vr(0.0).set_Vt(0.0)
print(
    f"Original datum: P = {datum.P:.0f} Pa, T = {datum.T:.0f} K\n"
    f"                h = {datum.h:.0f} J/kg, s = {datum.s:.1f} J/kg/K"
)

datum.set_fluid(fluid.change_datum(101325.0, 288.15))
print(
    f"Shifted datum:  P = {datum.P:.0f} Pa, T = {datum.T:.0f} K\n"
    f"                h = {datum.h:.0f} J/kg, s = {datum.s:.1f} J/kg/K"
)

Original datum: P = 120000 Pa, T = 350 K
                h = 136393 J/kg, s = 102.6 J/kg/K
Shifted datum:  P = 120000 Pa, T = 350 K
                h = 144899 J/kg, s = 146.9 J/kg/K

Reference scales

A block stores its conserved variables in a non-dimensional backing array, scaled by a fluid reference density and velocity, and the block’s reference length — see Reference scales. The dimensional conserved variables are independent of this choice; only the raw conserved_nd array changes. If we set reference scales matched to the flow, the raw values sit near unity, which keeps the backing array well-conditioned, while the dimensional values are unchanged.

cons = ember.block.Block().set_fluid(fluid).set_r(1.0)
cons.set_P_T(1e5, 300.0).set_Vx(150.0).set_Vr(0.0).set_Vt(60.0)
print("With unit reference scales:")
print(f"  conserved    = {cons.conserved}")
print(f"  conserved_nd = {cons.conserved_nd}")  # Same as dimensional

# Choose reference scales matched to the flow state.
cons.set_fluid(fluid.change_ref(rho_ref=float(cons.rho), V_ref=300.0, Rgas_ref=287.0))
cons.set_L_ref(1.0)
print("With matched reference scales:")
print(f"  conserved    = {cons.conserved}")  # Dimensional values unchanged
print(f"  conserved_nd = {cons.conserved_nd}")  # Raw backing array near unity

With unit reference scales:
  conserved    = [1.1608626e+00 1.7412938e+02 0.0000000e+00 6.9651756e+01 1.5149257e+04]
  conserved_nd = [1.1608626e+00 1.7412938e+02 0.0000000e+00 6.9651756e+01 1.5149257e+04]
With matched reference scales:
  conserved    = [1.1608622e+00 1.7412933e+02 0.0000000e+00 6.9651733e+01 1.5149268e+04]
  conserved_nd = [0.9999997  0.49999985 0.         0.19999996 0.14500012]

Rotating reference frame

By default the angular velocity Omega is zero, so absolute and relative circumferential velocities are equal and the stagnation pressure equals its relative counterpart. Setting a rotation rate splits the absolute and relative swirl and changes the relative stagnation pressure, without affecting the absolute stagnation pressure or the static pressure. Quantities suffixed _rel are evaluated in the rotating frame.

rotor = ember.block.Block().set_fluid(fluid).set_r(1.0)
rotor.set_P_T(1e5, 300.0).set_Vx(0.0).set_Vr(0.0).set_Vt(100.0)
print("At rest:")
print(f"  Vt = {rotor.Vt:.1f} m/s, Vt_rel = {rotor.Vt_rel:.1f} m/s")
print(f"  Po = {rotor.Po:.0f} Pa, Po_rel = {rotor.Po_rel:.0f} Pa")

rotor.set_Omega(50.0)  # rad/s
print("Spinning at Omega = 50 rad/s:")
print(f"  Vt = {rotor.Vt:.1f} m/s, Vt_rel = {rotor.Vt_rel:.1f} m/s")
print(f"  Po = {rotor.Po:.0f} Pa, Po_rel = {rotor.Po_rel:.0f} Pa")

At rest:
  Vt = 100.0 m/s, Vt_rel = 100.0 m/s
  Po = 105926 Pa, Po_rel = 105926 Pa
Spinning at Omega = 50 rad/s:
  Vt = 100.0 m/s, Vt_rel = 50.0 m/s
  Po = 105926 Pa, Po_rel = 101459 Pa

Array-valued blocks and broadcasting

A shape argument allocates a multidimensional field. Inputs to the setters broadcast to the block shape, so a scalar fills the whole block and a 1-D array fills along one axis.

field = ember.block.Block(shape=(5, 6, 5)).set_fluid(fluid)
field.set_x(1.0)  # Scalar broadcasts everywhere
field.set_r(np.linspace(1.0, 2.0, field.ni))  # Varies along the first axis
print(f"Block shape {field.shape}, r spans {field.r.min()}--{field.r.max()}")

Block shape (5, 6, 5), r spans 1.0--2.0

Indexing and slicing

Blocks index like numpy arrays. An integer or tuple selects a point or sub-block; a slice returns a smaller block sharing the data. Every result is itself a block with all properties available.

line = ember.block.Block(shape=(10,))
line.set_x(np.arange(line.ni))
print(f"line[5].x = {line[5].x}, line[-2].x = {line[-2].x}")
print(f"line[3:6].x = {line[3:6].x}")

grid = ember.block.Block(shape=(3, 2))
grid.set_x(np.arange(grid.size).reshape(grid.shape))
print(f"grid[0, :].x = {grid[0, :].x}, grid[:, 1].x = {grid[:, 1].x}")

line[5].x = 5.0, line[-2].x = 8.0
line[3:6].x = [3. 4. 5.]
grid[0, :].x = [0. 1.], grid[:, 1].x = [1. 3. 5.]

Copying and reshaping

copy makes an independent block; transpose, flat and reshape rearrange the axes (as views where possible).

original = ember.block.Block().set_xrt(np.array([2.0, 3.0, 4.0]))
modified = original.copy().set_x(-6.0)
print(f"copy is independent: original.x = {original.x}, modified.x = {modified.x}")

shaped = ember.block.Block(shape=(4, 3))
shaped.set_x(np.arange(shaped.size).reshape(shaped.shape))
print(
    f"shape {shaped.shape} -> transpose {shaped.transpose().shape} "
    f"-> flat {shaped.flat().shape} -> reshape {shaped.reshape((2, 6)).shape}"
)

copy is independent: original.x = 2.0, modified.x = -6.0
shape (4, 3) -> transpose (3, 4) -> flat (12,) -> reshape (2, 6)

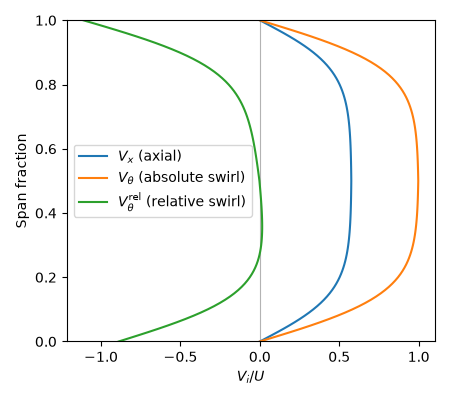

A radial profile: setters in, derived properties out

To tie the pieces together, build a one-dimensional radial line through an annulus and read back derived properties that the setters never touched directly. The thermodynamic state is uniform — the same static pressure and temperature at every radius — but the velocity varies with radius like a turbomachinery inlet profile: a uniform free stream with a smooth boundary layer growing in from each annulus wall. The flow is set as a speed and a fixed yaw (swirl) angle through set_V_Alpha_Beta(), and the block spins in a rotating frame via set_Omega().

We never set the axial velocity or the relative swirl directly. They fall out of the setters: Vx is the axial projection of the speed, and Vt_rel subtracts the local blade speed \(\Omega r\) from the absolute swirl.

r_hub, r_cas = 0.4, 0.5
profile = ember.block.Block(shape=(101,)).set_fluid(fluid)
r = np.linspace(r_hub, r_cas, profile.ni)
profile.set_r(r)

# Uniform static state across the span.
profile.set_P_T(1e5, 300.0)

# Smooth boundary layers growing in from the hub and casing walls: a tanh
# profile rolls off to zero at each wall without the kink of a power law.
V_inf, delta = 150.0, 0.015
d_wall = np.minimum(r - r_hub, r_cas - r)
V = V_inf * np.tanh(d_wall / delta)

# A fixed 60 deg swirl angle; no pitch. Speed and angles in, velocity out.
profile.set_V_Alpha_Beta(V, 60.0, 0.0)

# Spin the frame at the blade speed for the mean radius.
r_mid = 0.5 * (r_hub + r_cas)
Omega = V_inf * np.sin(np.radians(60.0)) / r_mid
profile.set_Omega(Omega)

# Non-dimensionalise: span fraction on the ordinate, velocity over blade speed
# U = Omega * r_mid on the abscissa.
span = (r - r_hub) / (r_cas - r_hub)
U = Omega * r_mid
fig, ax = plt.subplots(figsize=(4.5, 4.0))
ax.plot(profile.Vx / U, span, label=r"$V_x$ (axial)")
ax.plot(profile.Vt / U, span, label=r"$V_\theta$ (absolute swirl)")
ax.plot(profile.Vt_rel / U, span, label=r"$V_\theta^\mathrm{rel}$ (relative swirl)")
ax.axvline(0.0, color="0.7", lw=0.8, zorder=0)
ax.set_xlabel(r"$V_i / U$")
ax.set_ylabel("Span fraction")
ax.set_ylim(0.0, 1.0)
ax.legend(loc="center left")
fig.tight_layout()

plt.show()
